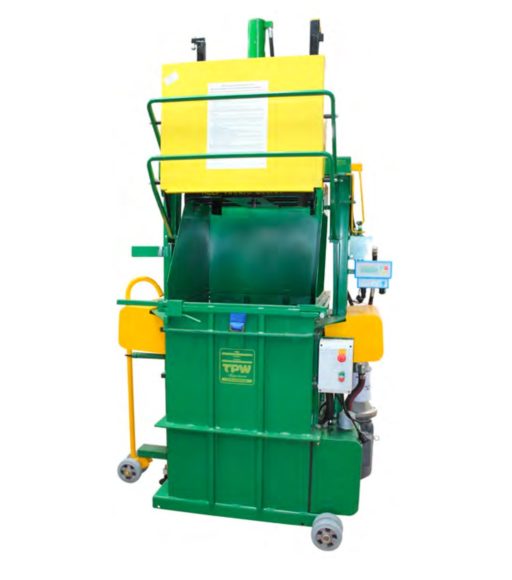

The World’s #1 Selling Woolpress

With industry leading safety features, the #1 selling and most trusted woolpress helps to keep you and your workers safe in the shed. Automatic bale pinning and ejection ensures contamination-free, short square bales and the fast pack locking system minimises the delay between bales.The TPW Xpress now includes the new FX1+ indicator and built-in power meter to monitor your voltage and amp draw.

Renowned reliability, the preferred woolpress of contractors
Safety screen guard complete with automatic return
Cycle time of 12-16 seconds in high yielding wool to 200kg
Swift pack locking system - the fastest available

Capable of pressing 90 bales of wool a day, the TPW Xpress Woolpress handles a 10 stand shed with ease. The unique automatic side pinning results in bales being compact, square and contamination free while the powerful yet quiet single hydraulic cylinder ensures more wool is pressed into fewer bales.

Specifically designed with a low overall height to be easily maneuvered and fit through personal doorways upright and comes complete with a reliable electronic weighing system.

Specifications


Operational Height	2740 mm
Transport Height	2140 mm
Box Height [filling]	1185 mm
Width	1390 mm
Depth	970 mm
Weight	530kg

Generator size minimum	8KVA
Pressure Relief	2600-2700psi
Oil Capacity	25 Litres
Pump	Variable displacement piston pump
Cylinder	88.9mm bore x 740mm stroke
Oil type	Hyspin AWS 32
Electric Models	2.2kw (3hp) 240 volt / 4kw 415 volt 3 phase / 480v dual voltage

Iconix Livestock Weighing System

A reputation of accuracy, durability and ease of use.

Iconix indicators and load bars are all interchangeable so you can mix and match a weighing system to suit your needs today and in the future.

FX1 Indicator - 601-000
FX15 Indicator - 601-001
FX21 Indicator - 601-003
Loadbars 600mm (pair) - 601-011
Loadbars 1000mm (pair) - 601-012
Loadbars 1000mm H/D (pair) - 601-013

Woolpress Cover

Protects your Woolpress from dirt, dust and other contaminants. Built to last with covered zips to keep dirt out, strong velcro fastening flaps for quick and secure fitment and top flap to fit raised cylinder.

900-312

Resources

TPW Xpress Manual

FX1+ Manual

TPW Xpress Woolpress spare parts list

Accessories

Woolbale Trolley

AXPS-130

Woolpress Trolley

606-030

Scale Update Kit

606-001
